t-series t7500 pump

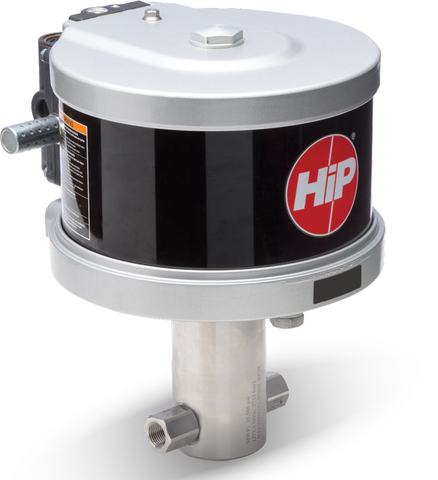

HiP | T7516 T-Series Air-Driven Pump | 15,750 PSI

  • $2,329.14


HiP T7500 SERIES PUMP

Features
  • 6 in. air cylinder
  • 2.5 inch pump stroke
  • Inlet air pressure 15 psi - 100 psi (1 to 7 bar)
  • Four different plunger seal materials; NBR , FKM , FFKM , EPR
  • *80 CPM recommended for optimal pump seal life

Technical Specifications:

 Part Number Ratio Seal Material

Max Working

Pressure

psi (Mpa, bar)

Max Pneumatic

Inlet Pressure

psi (Mpa, bar)



Displacement

per Stroke

in3 (ml)

T7516-158-NBR-00 158:1 NBR

15750

(109, 1090)

100 (0.69, 6.9) 0.70 (11.5)
T7516-158-FKM-00 158:1 FKM

15750

(109, 1090)

100 (0.69, 6.9) 0.70 (11.5)
T7516-158-FFKM-00 158:1 FFKM

15750

(109, 1090)

100 (0.69, 6.9) 0.70 (11.5)
T7516-158-EPR-00 158:1 EPR

15750

(109, 1090)

100 (0.69, 6.9) 0.70 (11.5)
