HiP | T7505 T-Series Air-Driven Pump | 5,000 PSI

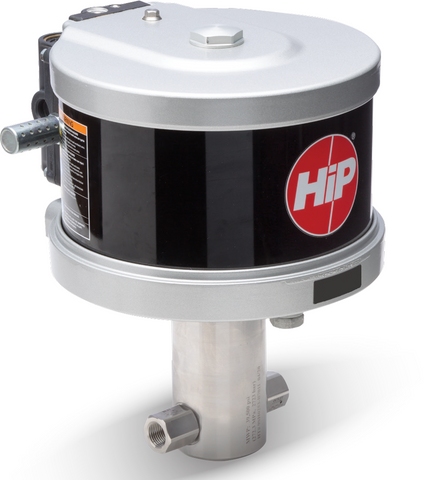

HiP T7500 SERIES PUMP
Features- 6 in. air cylinder
- 2.5 inch pump stroke
- Inlet air pressure 15 psi - 100 psi (1 to 7 bar)
- Four different plunger seal materials; NBR , FKM , FFKM , EPR
- *80 CPM recommended for optimal pump seal life
Technical Specifications:
| Part Number | Ratio | Seal Material |
Max Working Pressure psi (Mpa, bar) |
Max Pneumatic Inlet Pressure psi (Mpa, bar)
|
Displacement per Stroke in3 (ml) |
| T7505-050-NBR-00 | 50:1 | NBR |
5000 (35, 350) |
100 (0.69, 6.9) | 2.20 (36.0) |
| T7505-050-FKM-00 | 50:1 | FKM |
5000 (35, 350) |
100 (0.69, 6.9) | 2.20 (36.0) |
| T7505-050-FFKM-00 | 50:1 | FFKM |
5000 (35, 350) |
100 (0.69, 6.9) | 2.20 (36.0) |
| T7505-050-EPR-00 | 50:1 | EPR |
5000 (35, 350) |
100 (0.69, 6.9) | 2.20 (36.0) |
