BVA | JBT03, 3 Ton, Magic Lift Toe Jack

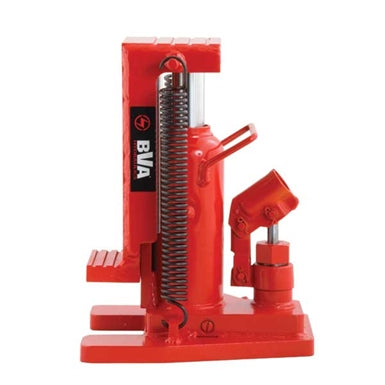

MAGIC LIFT TOE JACK
BVA Hydraulics
Model: JBT03
--- Replaces discontinued model# J13060 ---
Features:
- Heat treated and chrome plated medium-carbon steel cylinder
- Chrome plated ram promotes longer seal life and optimum performance
- U.S.Patented Magic Lift Mechanism provides fast lift under no load operation
- U.S.Patented by-pass device protects hydraulic system from over traveling damage
- Good for rail road job site and applications of bridge construction.
|
Capacity (ton) |
Model Number |
Toe Saddle Height min/max (in) |
Head Saddle Height min/max (in) |
Hydraulic Lifting (in) |
Base Size (in) Length/width |
Weight (lbs) |
| 3 |
JBT03 |
0.6 / 5.8 | 9.0 / 14.1 | 5.1 | 6.0 x 4.4 | 36.1 |
