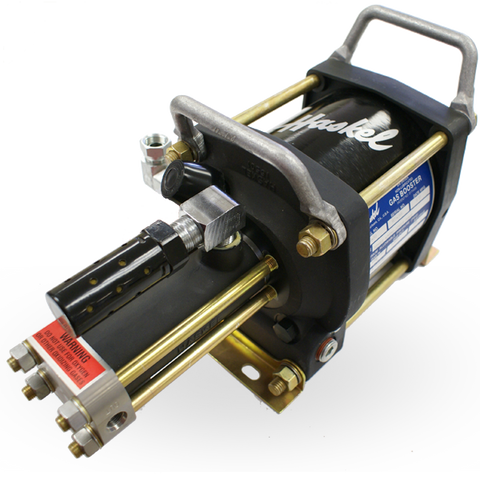

Haskel AG-30 | Pneumatic Driven Gas Booster

Haskel AG-30 | Pneumatic Driven Gas Booster

  • $5,537.00


Single Acting Single Stage, AG Series Gas Booster

Pneumatic Driven Gas Booster Features

  • Reliable, easy to maintain, compact and robust
  • Flexible and efficient
  • No airline lubricator required
  • Easy to apply automatic controls
  • Hydrocarbon free – separation between air and gas sections
  • Suitable for most gases
  • Ability to stall at any predetermined pressure & hold the
    fixed pressure without consuming power or generating heat

Technical Specifications:



Model Number: AG-30
Maximum Rated Gas Supply: 4500 PSIG ; 310 BAR
Min. Gas Supply Pressure: 100 PSIG ; 7 BAR
Maximum Rated Gas Outlet: Inert Gas: 4500 PSIG ; 310 BAR

Oxygen: 4500 PSIG ; 310 BAR
Hydrogen: 4500 PSIG ; 310 BAR
Static Outlet Stall Pressure Formula:  30 Pa
Piston Displacement Per Cycle: 3.1 Cu. In. ; 50.8 ML
Gas Inlet/Outlet Connections:  Interchangeable 3-3/8" SAE or 1/4" - H/P (BuTech) Both Ports
Weight:  27 LB


Optional Modifications:

Number | Description

C Controls: airline filter, reg w/gauge and manual start/stop
C8 On 5-3/4” drive 1/2 NPT
C13
On 8” or 14” drive 3/4 NPT
17860 Electrical stroke counter provision (Includes BZE6-2RQ) micro switch
25721
Mechanical stroke counter-installed (6 digit)
28881
External pilot modification - for 5-3/4” series
29125
External pilot modification - for 8” or 14” series
29376
Three way cycling spool for 5-3/4” series and 14” series
29702
Single stroke modification for 5-3/4” series and 14” series pump
50341
5-3/4” low permeability seals for CO2 gas service
50606
8” low permeability seals for CO2 gas service
51050
Extreme service cycling modification for 5-3/4” series pump
54312
Extreme service cycling modification for 8” or 14” series
56611
Vent purge with 15 psi relief - single end models
56611-2
Vent purge with 15 psi relief for 5-3/4”, 8” or 14” series
57875
Panel with regulator for mounting remote APS
54827
Level II cleaning and certification of gas sections.
59888
Cycle Timer
80862
Viton air drive
86337
Extended life air drive seals
82500
ATEX Modification
